Localize the UI with Translations Editor

The Translations Editor provides a consolidated and editable view of all of your default and translated string resources.

For an introduction to translating your app for different languages, read Support different languages and cultures.

Figure 1. The Translations Editor showing app text before translation

String resources

The string resources for a project are contained in strings.xml files. Your project has a default strings.xml file that contains string resources in the default language for your app, which is the language you expect most of your app users to speak. You can also have translated strings.xml files that contain string resources for other languages that you want your app to accommodate.

Once you have your default strings.xml file completed, you can add the translations yourself, or pay a professional service to do the translations. Either way, you should take advantage of the Android Studio features to help you manage and test localizable text. For information about professional translation services, see Translation services.

Open the Translations Editor

You can access the Translations Editor from the following places in Android Studio.

Open from the Android view

1. In the Project > Android panel on the left, select ModuleName > res > values.
2. Right-click the strings.xml file, and select Open Translations Editor.

   The Translations Editor displays the key and value pairs from the strings.xml file.

   Note: When you have translated strings.xml files, your project has multiple corresponding values folders with suffixes that indicate the language, such as values-es for Spanish. Your default strings.xml file is always in the values (no suffix) folder.

Figure 1 shows the default app text (in this case, English) in the Translations Editor for a simple app before translation work has been done. The contents of translated strings.xml files will appear to the right of the Untranslatable column with one column per language, as shown in figure 2.

Open from within strings.xml

You can access the Translations Editor from within any of your strings.xml files.

1. In the Project > Android panel on the left, select ModuleName > res > values.
2. Double-click strings.xml to open it for editing.
3. In strings.xml, click the Open editor link in the upper-right corner.

Note: If you click the Hide notification link, the Open editor link goes away. To bring it back, close and reopen the project.

Configure untranslatable rows

In the Translations Editor, you can select Untranslatable to indicate that you don't want the text in this row to be translated. Text that you would not want translated might be product-specific text like trade names and trade marks, or technical terms that don't have a translation.

When you select Untranslatable, the corresponding line in the default strings.xml file adds translatable="false". In the following example, EasyApp in the top line is not translated because it is the product name.

<resources>
    <string name="app_name" translatable="false">EasyApp</string>
    <string name="action_settings">Settings</string>
    <string name="easy_app">I am a Simple App!</string>
    <string name="next_page">Next Page</string>
    <string name="second_page_message">I am the Second Page!</string>
    <string name="title_activity_second">SecondActivity</string>
</resources>

Add and delete languages

The Translations Editor supports BCP 47 and combines locale and region (country) codes into a single selection for targeted localizations. A locale defines more than the language. A locale includes country-dependent formatting for things like the date and time, currencies, and decimals.

To add a language, do the following:

1. In the Translations Editor, click the globe icon .
2. From the drop-down list, select the language you want to add. The new language appears in the Translations Editor, and a values-* folder with a `strings.xml` file is added to the project. For example, values-es for Spanish.

To delete a language, do the following:

You can delete a language in the Translations Editor by deleting every value in the column (see Edit, add, and delete text), or you can delete the project folder for that language, as follows:

1. In the Project > Android panel on the left, select ModuleName > res.
2. Right-click the values-* folder for the language you want to delete. For example, values-hi for Hindi.
3. From the list, select Delete to delete the folder and its strings.xml file.

Edit, add, and delete text

You can operate on the text settings directly in the strings.xml file or through the Translations Editor. This section describes the Translations Editor approach. In the Translations Editor, you can edit, add, or delete text through the list view or through the Translation field at the bottom of the Translations Editor.

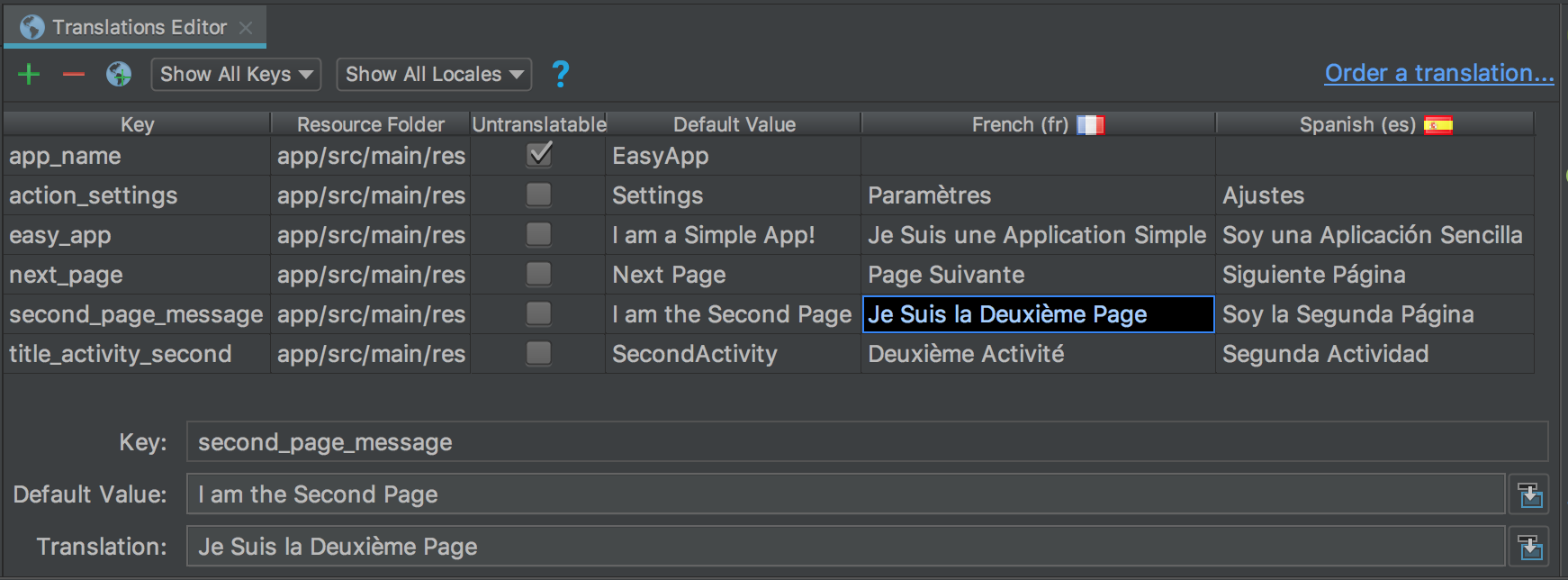

Figure 2. List view on the top and the Translation field on the bottom

List view

To edit or add text, do the following:

1. Double-click the cell where you want to edit or add text.
2. Do a keyboard copy-paste, or, if you have a keyboard that supports diacritic marks, type directly into the list view.
3. Tab or move the cursor out of the field.

To delete text, do the following:

1. Double-click the cell you want to delete.
2. In the list view, select the text and press Delete.
3. Tab or move the cursor out of the field.

Translation field

To edit or add text, do the following:

1. In the list view, single-click the cell where you want to edit or add text.
2. In the Translation field, do a keyboard copy-paste, or, if you have a keyboard that supports diacritic marks, type directly into the Translation field.
3. Tab or move the cursor out of the field.

To delete text, do the following:

1. Single-click the cell you want to delete.
2. In the Translation field, select the text and press Delete.

Add and delete keys

In the Translations Editor, the Key column lists the unique identifiers for each data item in your strings.xml files. You can add and delete keys through the Translations Editor. When you delete a key, the Translations Editor deletes it and all of its associated translations. The Translations Editor uses the Safe Delete refactoring to delete a key so you know if the key text is used elsewhere and have a chance to make necessary adjustments before you delete the key. The Safe Delete refactoring ensures that your code still compiles after you delete the key.

To add a key, do the following:

1. In the Translations Editor, click Add Key .
2. In the dialog, enter a key name, default value, and the location of the default strings.xml file.



   Figure 3. Add a key

To delete a key, do the following:

1. In the Translations Editor, select the key you want to delete.
2. Click Remove Keys .
3. In the Delete dialog, decide if you want a safe delete and whether you want to search in comments and strings, and click OK.



   Figure 4. Delete dialog

   If there are no references (usages) to the deleted key, or if all references are safely collapsible, the key is deleted. Otherwise, the Translations Editor displays the Usages Detected dialog with information about the problems detected.



   Figure 5. Delete dialog

4. Select View Usages to review what will be deleted. The Find Safe Delete Conflicts dialog shows all of the usages that are not safe to delete so you can edit your corresponding code.

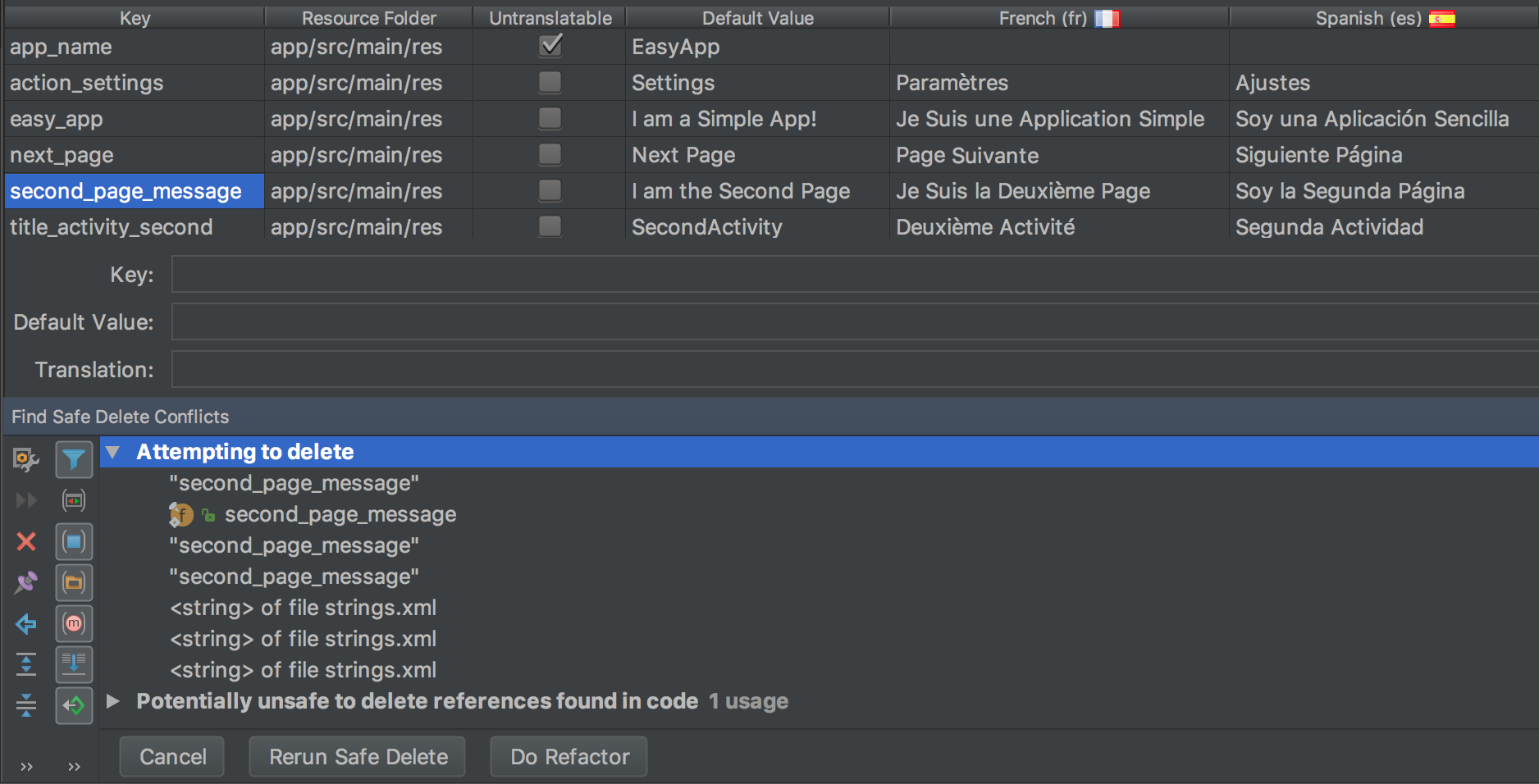

   Figure 6. Unsafe usages

5. Right-click a usage to display the context menu and select Jump to Source so you can make the needed changes.
6. In the Find Safe Delete Conflicts panel, select Rerun Safe Delete to make sure there are no other usages that need attention.
7. When the usages are cleaned up, click Do Refactor to delete the key.

Correct errors

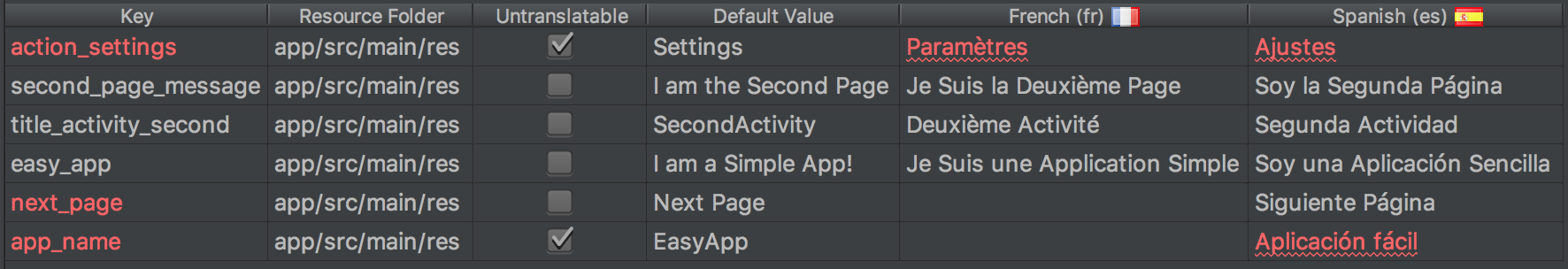

Figure 7 shows the Translations Editor displaying the contents of the English, French, and Spanish strings.xml files. The red text indicates lines that have errors.

Figure 7. Red text indicates an error condition that you must fix

To correct an error, hover over the red text to display an explanation of the problem and its resolution.

When you make changes in the Translations Editor, the underlying strings.xml files update with your changes. When you make changes in a strings.xml file, the corresponding column in the Translations Editor updates with your changes.

Example Translations Editor corrections:

• Figure 7 shows that the app_name row has Untranslatable checked, but there is a Spanish translation provided. Delete the Spanish translation to correct the error.
• Figure 7 shows that the next_page row is missing a French translation. Use your keyboard to copy Page Suivante into the cell to correct the error. A keyboard copy-paste operation copies the text with any diacritic marks into the cell.

Manage and test localizable text

The Android platform and Android Studio provide several features to help you manage and test your localizable app text. These features have options to help you target issues with right-to-left (RTL) scripts, such as Arabic or Hebrew. Testing your localizable text lets you make adjustments to the UI text and its layout before you commit your messages to the source repository to be sent for translation later.

Support RTL languages

Jetpack Compose handles right-to-left (RTL) layouts natively. Layout modifiers and APIs are built around directional concepts like start and end rather than absolute directions like left and right. When the system language changes to an RTL locale, Compose automatically mirrors these layouts for you.

For your app to recognize the RTL locale and trigger this mirroring, you must opt in using your app's manifest file.

To enable RTL support, do the following:

1. Open your AndroidManifest.xml file.
2. Add the android:supportsRtl="true" attribute to the <application> element:

<manifest ... >
    <application
        ...
        android:supportsRtl="true">
    </application>
</manifest>

To learn more about how Compose handles text layout, mirroring, and custom RTL configurations, see Working with RTL languages.

Manually set text direction

In Jetpack Compose, you don't use a visual Properties window to force layout or text directions. Compose automatically handles RTL mirroring based on the system locale.

However, if you need to manually override the direction for a specific text element (for example, displaying an LTR string in an RTL layout), you can pass a TextDirection object into your TextStyle.

Supported values include:

• TextDirection.Content: (Default): Infers the direction from the first strong directional character.
• TextDirection.Ltr: Forces left-to-right direction.
• TextDirection.Rtl: Forces right-to-left direction.

To learn more about styling text and configuring manual text directions in Compose, see Style text.

Use localized strings in your app

Once you have added and translated your strings using the Translations Editor, your underlying res/values/strings.xml files are automatically updated and you can use the localized resources directly in your UI.

To learn how to display localized text, handle RTL natively, and use @Preview to test different locales and pseudolocales, see the Strings section of Resources in Compose.

Pseudolocales

A pseudolocale is a simulated locale that is designed to assume the characteristics of languages that cause UI, layout, RTL, and other translation problems when an app is translated. Pseudolocales provide instant and automatic translations that are readable in English for all localizable messages. This makes it possible for you to catch untranslatable messages in your source code.

For information about how to use pseudolocales, see Test your app with pseudolocales.
