Getting started with CastPlayer

The CastPlayer is a Jetpack Media3 Player implementation that supports both local playback and casting to a remote Cast-enabled device. CastPlayer simplifies adding cast functionality to your app and provides rich features to seamlessly switch between local and remote playback. This guide shows you how to integrate CastPlayer into your media app.

To integrate Cast with other platforms, see the Cast SDK.

Get a Cast-enabled device

To test CastPlayer, you need a Cast-enabled device. Choices include Android TV, Chromecast, smart speakers, and smart displays. Verify that your device is set up and connected to the same Wi-Fi network as your development mobile for discovery.

Add build dependencies

To start using CastPlayer, add the AndroidX Media3 and CastPlayer dependencies to the build.gradle file of your app module.

Kotlin

implementation("androidx.media3:media3-exoplayer:1.9.2")
implementation("androidx.media3:media3-ui:1.9.2")
implementation("androidx.media3:media3-session:1.9.2")
implementation("androidx.media3:media3-cast:1.9.2")

Groovy

implementation "androidx.media3:media3-exoplayer:1.9.2"
implementation "androidx.media3:media3-ui:1.9.2"
implementation "androidx.media3:media3-session:1.9.2"
implementation "androidx.media3:media3-cast:1.9.2"

Configure your CastPlayer

To configure the CastPlayer, update your AndroidManifest.xml file with an options provider.

Options provider

The CastPlayer requires an options provider to configure its behavior. For a basic setup, you can use the DefaultCastOptionsProvider by adding it to your AndroidManifest.xml file. This uses default settings, including the default receiver application.

<application>
  ...
  <meta-data
    android:name="com.google.android.gms.cast.framework.OPTIONS_PROVIDER_CLASS_NAME"
    android:value="androidx.media3.cast.DefaultCastOptionsProvider" />
  ...
</application>

To customize the configuration, implement your own custom OptionsProvider. See the CastOptions guide to learn how.

Add a receiver for media transfers

Adding a MediaTransferReceiver to your manifest enables the System UI to discover Cast-enabled devices on the network and reroute media without opening the app activity. For example, a user can change the device playing your app's media from the media notification.

<application>
  ...
  <receiver android:name="androidx.mediarouter.media.MediaTransferReceiver" />
  ...
</application>

Build a CastPlayer

For remote playback with Cast, your app should be able to manage playback even when the user isn't interacting with an Activity from your app, such as through the system media notification. For this reason, you should create your ExoPlayer (for local playback) and CastPlayer (for remote playback) instances in a service, such as MediaSessionService or MediaLibraryService. First, create your ExoPlayer instance and then when building your CastPlayer instance, set ExoPlayer as the local player instance. You can then switch media playback between your mobile and the Cast-enabled device from the media notification or the lock screen notification. Media3 uses the Output Switcher feature to handle player transfers when the output route changes from local to remote or from remote to local.

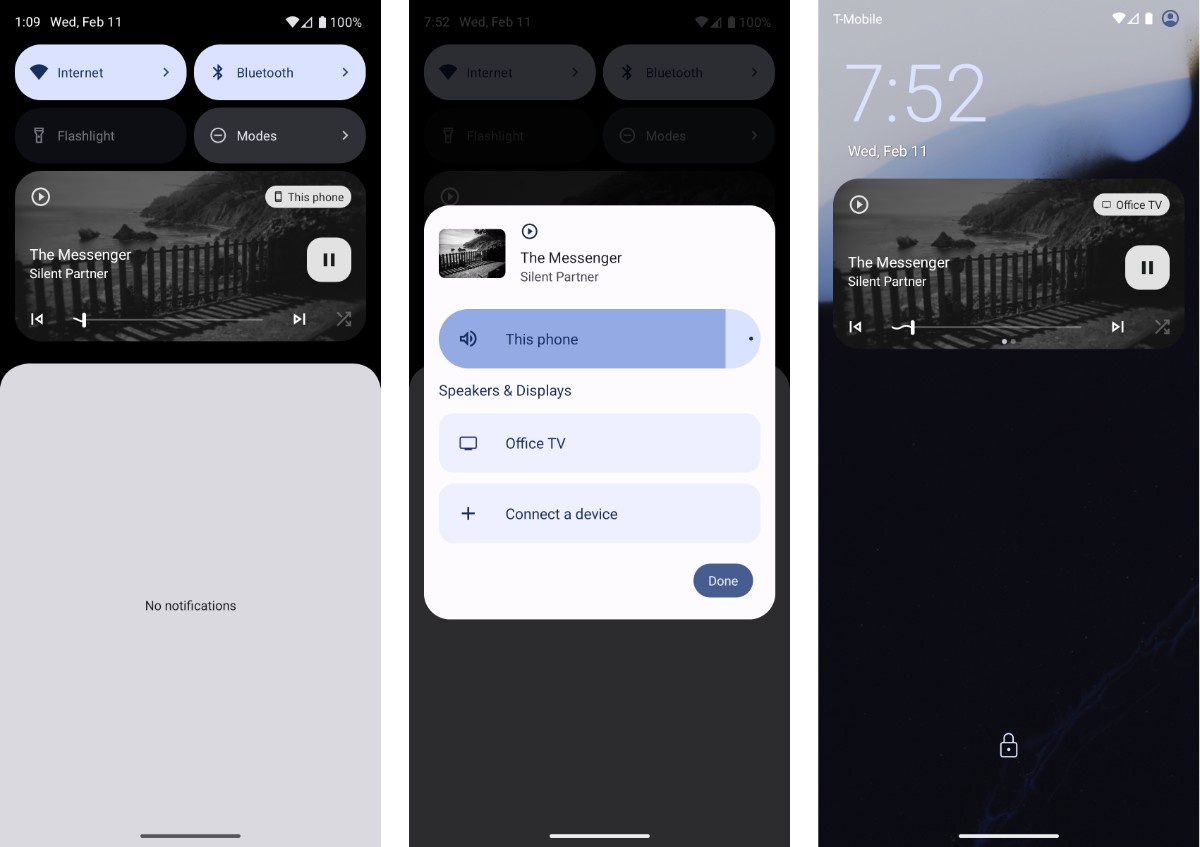

Figure 1: (a) Device chip on Media notification (b) Cast-enabled devices shown on tapping the device chip (c) Device chip on Lock screen notification

Kotlin

override fun onCreate() {
  super.onCreate()

  val exoPlayer = ExoPlayer.Builder(context).build()
  val castPlayer = CastPlayer.Builder(context)
      .setLocalPlayer(exoPlayer)
      .build()

  mediaSession = MediaSession.Builder(context, castPlayer).build()
}

Java

@Override
public void onCreate() {
  super.onCreate();

  ExoPlayer exoPlayer = new ExoPlayer.Builder(context).build();
  CastPlayer castPlayer = new CastPlayer.Builder(context)
      .setLocalPlayer(exoPlayer)
      .build();

  mediaSession = new MediaSession.Builder(
    /* context= */ context, /* player= */ castPlayer).build();
}

Important: The preceding code snippet shows the onCreate method of a MediaSessionService. In an Activity, players should be created in onStart or onResume.

Add UI elements

Add a MediaRouteButton to your app's UI. Tapping the MediaRouteButton opens a dialog displaying a list of available Cast-enabled devices on the network. When the user selects a device, the media playback is transferred from the mobile to the selected receiver device. This section shows you how to add the button and listen for events to update your UI when playback switches between local and remote devices.

Set the MediaRouteButton

There are four ways to add the MediaRouteButton to your activity's UI. The best choice depends on your app's design and requirements.

• Compose UI: Add a button composable.
• Views UI:
  • Add the button to the app bar menu.
  • Add the button inside PlayerView.
  • Add the button as a standard View.

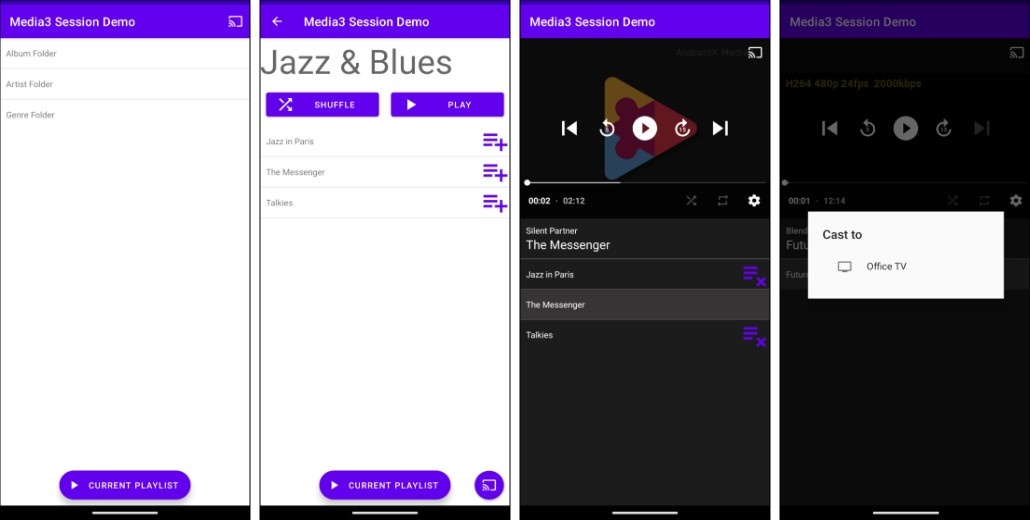

Figure 2: (a) MediaRouteButton in menu bar, (b) as a View, (c) in PlayerView, and (d) Dialog of Cast-enabled devices.

Important: To use the MediaRouteButton in Views UI, the containing activity must be a subclass of FragmentActivity.

Tip: These screenshots are from the demo-session apps in Media3. You can checkout the app to see an example of CastPlayer implementation.

Add a Composable MediaRouteButton to the Player

You can add the MediaRouteButton Composable to your player's UI. For more information, see the Compose guide.

Kotlin

import androidx.compose.animation.AnimatedVisibility
import androidx.compose.animation.fadeIn
import androidx.compose.animation.fadeOut
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.media3.cast.MediaRouteButton

@Composable
fun PlayerComposeView(player: Player, modifier: Modifier = Modifier) {
  var controlsVisible by remember { mutableStateOf(false) }

  Box(
    modifier = modifier.clickable { controlsVisible = true },
    contentAlignment = Alignment.Center,
  ) {
    PlayerSurface(player = player, modifier = modifier)
    AnimatedVisibility(visible = controlsVisible, enter = fadeIn(), exit = fadeOut()) {
      Box(modifier = Modifier.fillMaxSize()) {
        MediaRouteButton(modifier = Modifier.align(Alignment.TopEnd))
        PrimaryControls(player = player, modifier = Modifier.align(Alignment.Center))
      }
    }
  }
}

@Composable
fun PrimaryControls(player: Player, modifier: Modifier = Modifier) {
  ...
}

Add the MediaRouteButton to the PlayerView

You can add the MediaRouteButton directly within the PlayerView's UI controls. After setting the MediaController as the player for your PlayerView, provide a MediaRouteButtonViewProvider to display the Cast button on the Player.

Kotlin

override fun onStart() {
  super.onStart()

  playerView.player = mediaController
  playerView.setMediaRouteButtonViewProvider(MediaRouteButtonViewProvider())
}

Java

@Override
public void onStart() {
  super.onStart();

  playerView.setPlayer(mediaController);
  playerView.setMediaRouteButtonViewProvider(new MediaRouteButtonViewProvider());
}

Add the MediaRouteButton to the app bar menu

To set up a MediaRouteButton in the app bar menu, create an XML menu and override onCreateOptionsMenu in your Activity.

<menu xmlns:android="http://schemas.android.com/apk/res/android"
         xmlns:app="http://schemas.android.com/apk/res-auto">
  <item android:id="@+id/media_route_menu_item"
    android:title="@string/media_route_menu_title"
    app:showAsAction="always"
    app:actionProviderClass="androidx.mediarouter.app.MediaRouteActionProvider"/>
</menu>

Kotlin

override fun onCreateOptionsMenu(menu: Menu): Boolean {
    ...
    menuInflater.inflate(R.menu.sample_media_route_button_menu, menu)
    val menuItemFuture: ListenableFuture<MenuItem> =
        MediaRouteButtonFactory.setUpMediaRouteButton(
            context, menu, R.id.media_route_menu_item)
    Futures.addCallback(
        menuItemFuture,
        object : FutureCallback<MenuItem> {
            override fun onSuccess(menuItem: MenuItem?) {
                // Do something with the menu item.
            }

            override fun onFailure(t: Throwable) {
                // Handle the failure.
            }
        },
        executor)
    ...
}

Java

@Override
public boolean onCreateOptionsMenu(Menu menu) {
    ...
    getMenuInflater().inflate(R.menu.sample_media_route_button_menu, menu);
    ListenableFuture<MenuItem> menuItemFuture =
        MediaRouteButtonFactory.setUpMediaRouteButton(
          context, menu, R.id.media_route_menu_item);
    Futures.addCallback(
        menuItemFuture,
        new FutureCallback<MenuItem>() {
          @Override
          public void onSuccess(MenuItem menuItem) {
            // Do something with the menu item.
          }

          @Override
          public void onFailure(Throwable t) {
            // Handle the failure.
          }
        },
        executor);
    ...
}

Add the MediaRouteButton as a View

You can set up a MediaRouteButton in your activity layout.xml.

  <androidx.mediarouter.app.MediaRouteButton
      android:id="@+id/media_route_button"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      app:mediaRouteButtonTint="@android:color/white" />

To complete the setup for the MediaRouteButton, use the Media3 Cast MediaRouteButtonFactory in your Activity code.

Kotlin

override fun onCreate(savedInstanceState: Bundle?) {
  super.onCreate(savedInstanceState)

  findViewById<MediaRouteButton>(R.id.media_route_button)?.also {
    val unused = MediaRouteButtonFactory.setUpMediaRouteButton(context, it)
  }
}

Java

@Override
public void onCreate(Bundle savedInstanceState) {
    ...
    MediaRouteButton button = findViewById(R.id.media_route_button);
    ListenableFuture<Void> setUpFuture =
        MediaRouteButtonFactory.setUpMediaRouteButton(context, button);
}

Activity Listener

Create a Player.Listener in your Activity to listen for changes to media playback location. When the playbackType changes between PLAYBACK_TYPE_LOCAL and PLAYBACK_TYPE_REMOTE, you can adjust your UI as needed. To prevent memory leaks and to confine listener activity to only when your app is visible, register the listener in onStart and unregister it in onStop:

Kotlin

import androidx.media3.common.DeviceInfo
import androidx.media3.common.Player

private val playerListener: Player.Listener =
  object : Player.Listener {
    override fun onDeviceInfoChanged(deviceInfo: DeviceInfo) {
      if (deviceInfo.playbackType == DeviceInfo.PLAYBACK_TYPE_LOCAL) {
        // Add UI changes for local playback.
      } else if (deviceInfo.playbackType == DeviceInfo.PLAYBACK_TYPE_REMOTE) {
        // Add UI changes for remote playback.
      }
    }
  }

override fun onStart() {
  super.onStart()
  mediaController.addListener(playerListener)
}

override fun onStop() {
  super.onStop()
  mediaController.removeListener(playerListener)
}

Java

import androidx.media3.common.DeviceInfo;
import androidx.media3.common.Player;

private Player.Listener playerListener =
    new Player.Listener() {
      @Override
      public void onDeviceInfoChanged(DeviceInfo deviceInfo) {
        if (deviceInfo.playbackType == DeviceInfo.PLAYBACK_TYPE_LOCAL) {
          // Add UI changes for local playback.
        } else if (deviceInfo.playbackType == DeviceInfo.PLAYBACK_TYPE_REMOTE) {
          // Add UI changes for remote playback.
        }
      }
    };

@Override
protected void onStart() {
  super.onStart();
  mediaController.addListener(playerListener);
}

@Override
protected void onStop() {
  super.onStop();
  mediaController.removeListener(playerListener);
}

For more information about listening and responding to playback events, see the player events guide.
