Questo documento descrive come eseguire la migrazione dei giochi esistenti dall'SDK games v1 all'SDK games v2.
Prima di iniziare
Per eseguire la migrazione del gioco, puoi utilizzare qualsiasi IDE preferito, ad esempio Android Studio. Completa i seguenti passaggi prima di eseguire la migrazione a games v2:
- Scaricare e installare Android Studio
- Il gioco deve utilizzare l'SDK v1 per i giochi
Aggiorna le dipendenze
Nel file
build.gradle
del modulo, trova questa riga nelle dipendenze a livello di modulo.implementation "com.google.android.gms:play-services-games-v1:+"
Sostituiscilo con il seguente codice:
implementation "com.google.android.gms:play-services-games-v2:version"
Sostituisci version con la versione più recente dell'SDK per i giochi.
Dopo aver aggiornato le dipendenze, assicurati di completare tutti i passaggi descritti in questo documento.
Definisci l'ID progetto
Per aggiungere l'ID progetto SDK dei servizi per i giochi di Play alla tua app, completa i seguenti passaggi:
Nel file
AndroidManifest.xml
, aggiungi i seguenti attributi ed elementi<meta-data>
all'elemento<application>
:<manifest> <application> <meta-data android:name="com.google.android.gms.games.APP_ID" android:value="@string/game_services_project_id"/> </application> </manifest>
Definisci il riferimento alla risorsa stringa
@string/game_services_project_id
utilizzando l'ID progetto dei servizi per i giochi dei tuoi giochi come valore. L'ID progetto dei servizi per i giochi si trova sotto il nome del gioco nella pagina Configurazione di Google Play Console.Nel file
res/values/strings.xml
, aggiungi un riferimento a una risorsa stringa e imposta l'ID progetto come valore. Ad esempio:<!-- res/values/strings.xml --> <resources> <!-- Replace 0000000000 with your game’s project id. Example value shown above. --> <string translatable="false" name="game_services_project_id"> 0000000000 </string> </resources>
Eseguire la migrazione dall'accesso Google deprecato
Sostituisci la classe GoogleSignInClient
con la classe GamesSignInClient
.
Java
Individua i file del corso GoogleSignInClient
.
import com.google.android.gms.auth.api.signin.GoogleSignIn;
import com.google.android.gms.auth.api.signin.GoogleSignInClient;
import com.google.android.gms.auth.api.signin.GoogleSignInOptions;
// ... existing code
@Override
public void onCreate(@Nullable Bundle bundle) {
super.onCreate(bundle);
// ... existing code
GoogleSignInOptions signInOption =
new GoogleSignInOptions.Builder(GoogleSignInOptions.DEFAULT_GAMES_SIGN_IN).build();
// Client used to sign in to Google services
GoogleSignInClient googleSignInClient =
GoogleSignIn.getClient(this, signInOptions);
}
e aggiornalo con questo:
import com.google.android.gms.games.PlayGamesSdk;
import com.google.android.gms.games.PlayGames;
import com.google.android.gms.games.GamesSignInClient;
// ... existing code
@Override
public void onCreate(){
super.onCreate();
PlayGamesSdk.initialize(this);
// Client used to sign in to Google services
GamesSignInClient gamesSignInClient =
PlayGames.getGamesSignInClient(getActivity());
}
Kotlin
Individua i file del corso GoogleSignInClient
.
import com.google.android.gms.auth.api.signin.GoogleSignIn
import com.google.android.gms.auth.api.signin.GoogleSignInClient
import com.google.android.gms.auth.api.signin.GoogleSignInOptions
// ... existing code
val signInOptions = GoogleSignInOptions.DEFAULT_GAMES_SIGN_IN
// ... existing code
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
val googleSignInClient: GoogleSignInClient =
GoogleSignIn.getClient(this, signInOptions)
}
e aggiornalo con questo:
import com.google.android.gms.games.PlayGames
import com.google.android.gms.games.PlayGamesSdk
import com.google.android.gms.games.GamesSignInClient
// ... existing code
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
PlayGamesSdk.initialize(this)
// client used to sign in to Google services
val gamesSignInClient: GamesSignInClient =
PlayGames.getGamesSignInClient(this)
}
Aggiorna il codice GoogleSignIn
L'API GoogleSignIn
non è supportata nell'SDK v2 per i giochi. Sostituisci il codice API GoogleSignIn
con l'API GamesSignInClient
come mostrato nell'esempio seguente.
Per richiedere un token di accesso lato server, utilizza il
metodo GamesSignInClient.requestServerSideAccess()
.
Per ulteriori informazioni, vedi
Aggiornare le classi di accesso lato server.
Java
Individua i file del corso GoogleSignIn
.
// Request code used when invoking an external activity.
private static final int RC_SIGN_IN = 9001;
private boolean isSignedIn() {
GoogleSignInAccount account = GoogleSignIn.getLastSignedInAccount(this);
GoogleSignInOptions signInOptions =
GoogleSignInOptions.DEFAULT_GAMES_SIGN_IN;
return GoogleSignIn.hasPermissions(account, signInOptions.getScopeArray());
}
private void signInSilently() {
GoogleSignInOptions signInOptions =
GoogleSignInOptions.DEFAULT_GAMES_SIGN_IN;
GoogleSignInClient signInClient = GoogleSignIn.getClient(this, signInOptions);
signInClient
.silentSignIn()
.addOnCompleteListener(
this,
task -> {
if (task.isSuccessful()) {
// The signed-in account is stored in the task's result.
GoogleSignInAccount signedInAccount = task.getResult();
showSignInPopup();
} else {
// Perform interactive sign in.
startSignInIntent();
}
});
}
private void startSignInIntent() {
GoogleSignInClient signInClient = GoogleSignIn.getClient(this,
GoogleSignInOptions.DEFAULT_GAMES_SIGN_IN);
Intent intent = signInClient.getSignInIntent();
startActivityForResult(intent, RC_SIGN_IN);
}
@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
super.onActivityResult(requestCode, resultCode, data);
if (requestCode == RC_SIGN_IN) {
GoogleSignInResult result =
Auth.GoogleSignInApi.getSignInResultFromIntent(data);
if (result.isSuccess()) {
// The signed-in account is stored in the result.
GoogleSignInAccount signedInAccount = result.getSignInAccount();
showSignInPopup();
} else {
String message = result.getStatus().getStatusMessage();
if (message == null || message.isEmpty()) {
message = getString(R.string.signin_other_error);
}
new AlertDialog.Builder(this).setMessage(message)
.setNeutralButton(android.R.string.ok, null).show();
}
}
}
private void showSignInPopup() {
Games.getGamesClient(requireContext(), signedInAccount)
.setViewForPopups(contentView)
.addOnCompleteListener(
task -> {
if (task.isSuccessful()) {
logger.atInfo().log("SignIn successful");
} else {
logger.atInfo().log("SignIn failed");
}
});
}
e aggiornalo con questo:
private void signInSilently() {
gamesSignInClient.isAuthenticated().addOnCompleteListener(isAuthenticatedTask -> {
boolean isAuthenticated =
(isAuthenticatedTask.isSuccessful() &&
isAuthenticatedTask.getResult().isAuthenticated());
if (isAuthenticated) {
// Continue with Play Games Services
} else {
// If authentication fails, either disable Play Games Services
// integration or
// display a login button to prompt players to sign in.
// Use`gamesSignInClient.signIn()` when the login button is clicked.
}
});
}
@Override
protected void onResume() {
super.onResume();
// When the activity is inactive, the signed-in user's state can change;
// therefore, silently sign in when the app resumes.
signInSilently();
}
Kotlin
Individua i file del corso GoogleSignIn
.
// Request codes we use when invoking an external activity.
private val RC_SIGN_IN = 9001
// ... existing code
private fun isSignedIn(): Boolean {
val account = GoogleSignIn.getLastSignedInAccount(this)
val signInOptions = GoogleSignInOptions.DEFAULT_GAMES_SIGN_IN
return GoogleSignIn.hasPermissions(account, *signInOptions.scopeArray)
}
private fun signInSilently() {
val signInOptions = GoogleSignInOptions.DEFAULT_GAMES_SIGN_IN
val signInClient = GoogleSignIn.getClient(this, signInOptions)
signInClient.silentSignIn().addOnCompleteListener(this) { task ->
if (task.isSuccessful) {
// The signed-in account is stored in the task's result.
val signedInAccount = task.result
// Pass the account to showSignInPopup.
showSignInPopup(signedInAccount)
} else {
// Perform interactive sign in.
startSignInIntent()
}
}
}
private fun startSignInIntent() {
val signInClient = GoogleSignIn.getClient(this, GoogleSignInOptions.DEFAULT_GAMES_SIGN_IN)
val intent = signInClient.signInIntent
startActivityForResult(intent, RC_SIGN_IN)
}
override fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent?) {
super.onActivityResult(requestCode, resultCode, data)
if (requestCode == RC_SIGN_IN) {
val result = Auth.GoogleSignInApi.getSignInResultFromIntent(data)
if (result.isSuccess) {
// The signed-in account is stored in the result.
val signedInAccount = result.signInAccount
showSignInPopup(signedInAccount) // Pass the account to showSignInPopup.
} else {
var message = result.status.statusMessage
if (message == null || message.isEmpty()) {
message = getString(R.string.signin_other_error)
}
AlertDialog.Builder(this)
.setMessage(message)
.setNeutralButton(android.R.string.ok, null)
.show()
}
}
}
private fun showSignInPopup(signedInAccount: GoogleSignInAccount) {
// Add signedInAccount parameter.
Games.getGamesClient(this, signedInAccount)
.setViewForPopups(contentView) // Assuming contentView is defined.
.addOnCompleteListener { task ->
if (task.isSuccessful) {
logger.atInfo().log("SignIn successful")
} else {
logger.atInfo().log("SignIn failed")
}
}
}
e aggiornalo con questo:
private fun signInSilently() {
gamesSignInClient.isAuthenticated.addOnCompleteListener { isAuthenticatedTask ->
val isAuthenticated = isAuthenticatedTask.isSuccessful &&
isAuthenticatedTask.result.isAuthenticated
if (isAuthenticated) {
// Continue with Play Games Services
} else {
// To handle a user who is not signed in, either disable Play Games Services integration
// or display a login button. Selecting this button calls `gamesSignInClient.signIn()`.
}
}
}
override fun onResume() {
super.onResume()
// Since the state of the signed in user can change when the activity is
// not active it is recommended to try and sign in silently from when the
// app resumes.
signInSilently()
}
Aggiungere il codice GamesSignInClient
Se l'accesso del giocatore è andato a buon fine, rimuovi il pulsante di accesso ai servizi per i giochi di Play dal tuo gioco. Se l'utente sceglie di non accedere all'avvio del gioco,
continua a mostrare un pulsante con l'icona dei servizi per i giochi di Play
e avvia la procedura di accesso con
GamesSignInClient.signIn()
.
Java
private void startSignInIntent() {
gamesSignInClient
.signIn()
.addOnCompleteListener( task -> {
if (task.isSuccessful() && task.getResult().isAuthenticated()) {
// sign in successful
} else {
// sign in failed
}
});
}
Kotlin
private fun startSignInIntent() {
gamesSignInClient
.signIn()
.addOnCompleteListener { task ->
if (task.isSuccessful && task.result.isAuthenticated) {
// sign in successful
} else {
// sign in failed
}
}
}
Rimuovere il codice di disconnessione
Rimuovi il codice per GoogleSignInClient.signOut
.
Rimuovi il codice mostrato nell'esempio seguente:
Java
// ... existing code
private void signOut() {
GoogleSignInClient signInClient = GoogleSignIn.getClient(this,
GoogleSignInOptions.DEFAULT_GAMES_SIGN_IN);
signInClient.signOut().addOnCompleteListener(this,
new OnCompleteListener() {
@Override
public void onComplete(@NonNull Task task) {
// At this point, the user is signed out.
}
});
}
Kotlin
// ... existing code
private fun signOut() {
val signInClient = GoogleSignIn.getClient(this, GoogleSignInOptions.DEFAULT_GAMES_SIGN_IN)
signInClient.signOut().addOnCompleteListener(this) {
// At this point, the user is signed out.
}
}

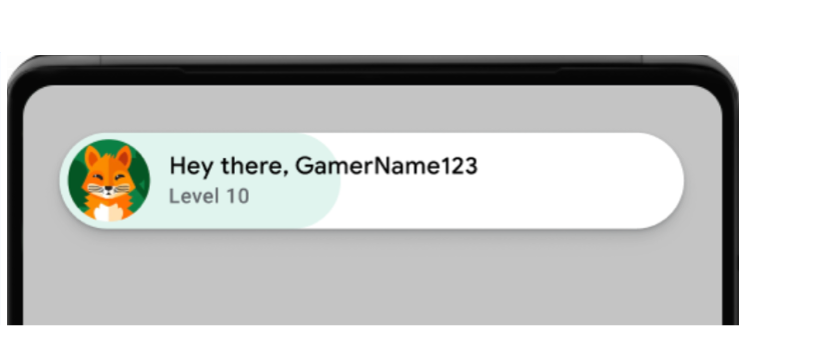

Verificare l'accesso automatico riuscito
Includi il seguente codice per verificare se hai eseguito l'accesso automatico e aggiungi la logica personalizzata, se disponibile.
Java
private void checkIfAutomaticallySignedIn() {
gamesSignInClient.isAuthenticated().addOnCompleteListener(isAuthenticatedTask -> {
boolean isAuthenticated =
(isAuthenticatedTask.isSuccessful() &&
isAuthenticatedTask.getResult().isAuthenticated());
if (isAuthenticated) {
// Continue with Play Games Services
// If your game requires specific actions upon successful sign-in,
// you can add your custom logic here.
// For example, fetching player data or updating UI elements.
} else {
// Disable your integration with Play Games Services or show a
// login button to ask players to sign-in. Clicking it should
// call GamesSignInClient.signIn().
}
});
}
Kotlin
private void checkIfAutomaticallySignedIn() {
gamesSignInClient.isAuthenticated()
.addOnCompleteListener { task ->
val isAuthenticated = task.isSuccessful && task.result?.isAuthenticated ?: false
if (isAuthenticated) {
// Continue with Play Games Services
} else {
// Disable your integration or show a login button
}
}
}
Aggiorna i nomi e i metodi delle classi client
Quando esegui la migrazione a games v2, i metodi utilizzati per ottenere i nomi delle classi client
sono diversi.
Utilizza i metodi
PlayGames.getxxxClient()
corrispondenti anziché
i metodi
Games.getxxxClient()
.
Ad esempio, per
LeaderboardsClient
utilizza PlayGames.getLeaderboardsClient()
anziché il
metodo Games.getLeaderboardsClient()
.
Rimuovi qualsiasi codice correlato alle classi GamesClient
e GamesMetadataClient
in quanto non disponiamo di classi sostitutive in games v2.
Java
Individua il codice per LeaderboardsClient
.
import com.google.android.gms.games.LeaderboardsClient;
import com.google.android.gms.games.Games;
@Override
public void onCreate(@Nullable Bundle bundle) {
super.onCreate(bundle);
// Get the leaderboards client using Play Games services.
LeaderboardsClient leaderboardsClient = Games.getLeaderboardsClient(this,
GoogleSignIn.getLastSignedInAccount(this));
}
e aggiornalo con questo:
import com.google.android.gms.games.LeaderboardsClient;
import com.google.android.gms.games.PlayGames;
@Override
public void onCreate(@Nullable Bundle bundle) {
super.onCreate(bundle);
// Get the leaderboards client using Play Games services.
LeaderboardsClient leaderboardsClient = PlayGames.getLeaderboardsClient(getActivity());
}
Kotlin
Individua il codice per LeaderboardsClient
.
import com.google.android.gms.games.LeaderboardsClient
import com.google.android.gms.games.Games
// Initialize the variables.
private lateinit var leaderboardsClient: LeaderboardsClient
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
leaderboardsClient = Games.getLeaderboardsClient(this,
GoogleSignIn.getLastSignedInAccount(this))
}
e aggiornalo con questo:
import com.google.android.gms.games.LeaderboardsClient
import com.google.android.gms.games.PlayGames
// Initialize the variables.
private lateinit var leaderboardsClient: LeaderboardsClient
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
leaderboardsClient = PlayGames.getLeaderboardsClient(this)
}
Allo stesso modo, utilizza i metodi corrispondenti per i seguenti client:
AchievementsClient
, EventsClient
, GamesSignInClient
,
PlayerStatsClient
, RecallClient
, SnapshotsClient
o PlayersClient
.
Aggiornare le classi di accesso lato server
Per richiedere un token di accesso lato server, utilizza il metodo
GamesSignInClient.requestServerSideAccess()
anziché il metodo
GoogleSignInAccount.getServerAuthCode()
.
Per maggiori informazioni, vedi Inviare il codice di autorizzazione del server.
Il seguente esempio mostra come richiedere un token di accesso lato server.
Java
Individua il codice del corso GoogleSignInOptions
.
private static final int RC_SIGN_IN = 9001;
private GoogleSignInClient googleSignInClient;
private void startSignInForAuthCode() {
/** Client ID for your backend server. */
String webClientId = getString(R.string.webclient_id);
GoogleSignInOptions signInOption = new GoogleSignInOptions.Builder(GoogleSignInOptions.DEFAULT_GAMES_SIGN_IN)
.requestServerAuthCode(webClientId)
.build();
GoogleSignInClient signInClient = GoogleSignIn.getClient(this, signInOption);
Intent intent = signInClient.getSignInIntent();
startActivityForResult(intent, RC_SIGN_IN);
}
/** Auth code to send to backend server */
private String mServerAuthCode;
@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
super.onActivityResult(requestCode, resultCode, data);
if (requestCode == RC_SIGN_IN) {
GoogleSignInResult result = Auth.GoogleSignInApi.getSignInResultFromIntent(data);
if (result.isSuccess()) {
mServerAuthCode = result.getSignInAccount().getServerAuthCode();
} else {
String message = result.getStatus().getStatusMessage();
if (message == null || message.isEmpty()) {
message = getString(R.string.signin_other_error);
}
new AlertDialog.Builder(this).setMessage(message)
.setNeutralButton(android.R.string.ok, null).show();
}
}
}
e aggiornalo con questo:
private void startRequestServerSideAccess() {
GamesSignInClient gamesSignInClient = PlayGames.getGamesSignInClient(this);
gamesSignInClient
.requestServerSideAccess(OAUTH_2_WEB_CLIENT_ID,
/* forceRefreshToken= */ false, /* additional AuthScope */ scopes)
.addOnCompleteListener(task -> {
if (task.isSuccessful()) {
AuthResponse authresp = task.getResult();
// Send the authorization code as a string and a
// list of the granted AuthScopes that were granted by the
// user. Exchange for an access token.
// Verify the player with Play Games Services REST APIs.
} else {
// Authentication code retrieval failed.
}
});
}
Kotlin
Individua il codice del corso GoogleSignInOptions
.
// ... existing code
private val RC_SIGN_IN = 9001
private lateinit var googleSignInClient: GoogleSignInClient
// Auth code to send to backend server.
private var mServerAuthCode: String? = null
private fun startSignInForAuthCode() {
// Client ID for your backend server.
val webClientId = getString(R.string.webclient_id)
val signInOption = GoogleSignInOptions.Builder(GoogleSignInOptions.DEFAULT_GAMES_SIGN_IN)
.requestServerAuthCode(webClientId)
.build()
googleSignInClient = GoogleSignIn.getClient(this, signInOption)
val intent = googleSignInClient.signInIntent
startActivityForResult(intent, RC_SIGN_IN)
}
override fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent?) {
super.onActivityResult(requestCode, resultCode, data)
if (requestCode == RC_SIGN_IN) {
val result = Auth.GoogleSignInApi.getSignInResultFromIntent(data)
if (result.isSuccess) {
mServerAuthCode = result.signInAccount.serverAuthCode
} else {
var message = result.status.statusMessage
if (message == null || message.isEmpty()) {
message = getString(R.string.signin_other_error)
}
AlertDialog.Builder(this).setMessage(message)
.setNeutralButton(android.R.string.ok, null).show()
}
}
}
e aggiornalo con questo:
private void startRequestServerSideAccess() {
GamesSignInClient gamesSignInClient = PlayGames.getGamesSignInClient(this);
gamesSignInClient
.requestServerSideAccess(OAUTH_2_WEB_CLIENT_ID, /* forceRefreshToken= */ false,
/* additional AuthScope */ scopes)
.addOnCompleteListener(task -> {
if (task.isSuccessful()) {
AuthResponse authresp = task.getResult();
// Send the authorization code as a string and a
// list of the granted AuthScopes that were granted by the
// user. Exchange for an access token.
// Verify the player with Play Games Services REST APIs.
} else {
// Authentication code retrieval failed.
}
});
}
Eseguire la migrazione da GoogleApiClient
Per le integrazioni esistenti meno recenti, il tuo gioco potrebbe dipendere dalla
variante dell'API GoogleApiClient
dell'SDK dei servizi per i giochi di Play. È stato
ritirato alla fine del 2017
e sostituito da client "senza connessione".
Per eseguire la migrazione, puoi sostituire la classe GoogleApiClient
con un equivalente "senza connessione".
La tabella seguente elenca le mappature delle classi comuni da games v1 a games v2:
games v2 (attuale) | games v1 (legacy) |
---|---|
com.google.android.gms.games.AchievementsClient | com.google.android.gms.games.achievement.Achievements |
com.google.android.gms.games.LeaderboardsClient | com.google.android.gms.games.leaderboard.Leaderboard |
com.google.android.gms.games.SnapshotsClient | com.google.android.gms.games.snapshot.Snapshots |
com.google.android.gms.games.PlayerStatsClient | com.google.android.gms.games.stats.PlayerStats |
com.google.android.gms.games.PlayersClient | com.google.android.gms.games.Players |
com.google.android.gms.games.GamesClientStatusCodes | com.google.android.gms.games.GamesStatusCodes |
Crea ed esegui il gioco
Per creare ed eseguire su Android Studio, vedi Crea ed esegui la tua app.
Testare il gioco
Assicurati che il gioco funzioni come previsto testandolo. I test che esegui dipendono dalle funzionalità del gioco.
Di seguito è riportato un elenco di test comuni da eseguire.
Accesso riuscito.
L'accesso automatico funziona. L'utente deve aver eseguito l'accesso ai servizi per i giochi di Play all'avvio del gioco.
Viene visualizzato il popup di benvenuto.
Esempio di popup di benvenuto (fai clic per ingrandire). Vengono visualizzati i messaggi di log riusciti. Esegui questo comando nel terminale:
adb logcat | grep com.google.android.
Un messaggio di log riuscito è mostrato nell'esempio seguente:
[
$PlaylogGamesSignInAction$SignInPerformerSource@e1cdecc number=1 name=GAMES_SERVICE_BROKER>], returning true for shouldShowWelcomePopup. [CONTEXT service_id=1 ]
Garantire la coerenza dei componenti dell'interfaccia utente.
Popup, classifiche e obiettivi vengono visualizzati correttamente e in modo coerente su varie dimensioni e orientamenti dello schermo nell'interfaccia utente dei servizi per i giochi di Play.
L'opzione di disconnessione non è visibile nell'interfaccia utente dei servizi per i giochi di Play.
Assicurati di poter recuperare correttamente l'ID giocatore e, se applicabile, che le funzionalità lato server funzionino come previsto.
Se il gioco utilizza l'autenticazione lato server, testa a fondo il flusso
requestServerSideAccess
. Assicurati che il server riceva il codice di autorizzazione e possa scambiarlo con un token di accesso. Esegui il test sia degli scenari di successo sia di quelli di errore per errori di rete, scenariclient ID
non validi.
Se il tuo gioco utilizzava una delle seguenti funzionalità, testale per assicurarti che funzionino come prima della migrazione:
- Classifiche: invia punteggi e visualizza le classifiche. Controlla il corretto posizionamento e la visualizzazione dei nomi e dei punteggi dei giocatori.
- Obiettivi: sblocca gli obiettivi e verifica che vengano registrati e visualizzati correttamente nell'interfaccia utente di Play Giochi.
- Partite salvate: se il gioco utilizza le partite salvate, assicurati che il salvataggio e il caricamento dei progressi di gioco funzionino perfettamente. Ciò è particolarmente importante per i test su più dispositivi e dopo gli aggiornamenti delle app.
Attività post-migrazione
Completa i seguenti passaggi dopo aver eseguito la migrazione a giochi v2.
Pubblica il gioco
Crea gli APK e pubblica il gioco in Play Console.
- Nel menu di Android Studio, seleziona Build > Build Bundles(s) / APK(s) > Build APK(s).
- Pubblica il gioco. Per maggiori informazioni, vedi Pubblicare app private da Play Console.
