SliderDefaults

Artifact: androidx.wear.compose:compose-material3

View Source

Added in 1.0.0-alpha26

object SliderDefaults

---

Defaults used by slider.

Summary

Public functions
Unit	@Composable DecreaseIcon(modifier: Modifier) Decrease Icon.
Unit	@Composable IncreaseIcon(modifier: Modifier) Increase Icon.
SliderColors	@Composable sliderColors() Creates a SliderColors that represents the default background and content colors used in an Slider.
SliderColors	@Composable sliderColors(     containerColor: Color,     buttonIconColor: Color,     selectedBarColor: Color,     unselectedBarColor: Color,     selectedBarSeparatorColor: Color,     unselectedBarSeparatorColor: Color,     disabledContainerColor: Color,     disabledButtonIconColor: Color,     disabledSelectedBarColor: Color,     disabledUnselectedBarColor: Color,     disabledSelectedBarSeparatorColor: Color,     disabledUnselectedBarSeparatorColor: Color ) Creates a SliderColors that represents the default background and content colors used in an Slider.
SliderColors	@Composable variantSliderColors() Creates a SliderColors as an alternative to the default colors, providing a visual indication of value changes within a Slider.
SliderColors	@Composable variantSliderColors(     containerColor: Color,     buttonIconColor: Color,     selectedBarColor: Color,     unselectedBarColor: Color,     selectedBarSeparatorColor: Color,     unselectedBarSeparatorColor: Color,     disabledContainerColor: Color,     disabledButtonIconColor: Color,     disabledSelectedBarColor: Color,     disabledUnselectedBarColor: Color,     disabledSelectedBarSeparatorColor: Color,     disabledUnselectedBarSeparatorColor: Color ) Creates a SliderColors as an alternative to the default colors, providing a visual indication of value changes within a Slider.

Public properties
Dp	IconSize The recommended size for Slider DecreaseIcon and IncreaseIcon button icons.
Int	MaxSegmentSteps The maximum recommended number of steps for a segmented Slider.
Shape	shape The recommended Shape for Slider.

Public functions

DecreaseIcon

Added in 1.0.0-alpha26

@Composable
fun DecreaseIcon(modifier: Modifier = Modifier): Unit

Decrease Icon.

IncreaseIcon

Added in 1.0.0-alpha26

@Composable
fun IncreaseIcon(modifier: Modifier = Modifier): Unit

Increase Icon.

sliderColors

Added in 1.0.0-alpha26

@Composable
fun sliderColors(): SliderColors

Creates a SliderColors that represents the default background and content colors used in an Slider.

sliderColors

@Composable
fun sliderColors(
    containerColor: Color = Color.Unspecified,
    buttonIconColor: Color = Color.Unspecified,
    selectedBarColor: Color = Color.Unspecified,
    unselectedBarColor: Color = Color.Unspecified,
    selectedBarSeparatorColor: Color = Color.Unspecified,
    unselectedBarSeparatorColor: Color = Color.Unspecified,
    disabledContainerColor: Color = Color.Unspecified,
    disabledButtonIconColor: Color = Color.Unspecified,
    disabledSelectedBarColor: Color = Color.Unspecified,
    disabledUnselectedBarColor: Color = Color.Unspecified,
    disabledSelectedBarSeparatorColor: Color = Color.Unspecified,
    disabledUnselectedBarSeparatorColor: Color = Color.Unspecified
): SliderColors

Creates a SliderColors that represents the default background and content colors used in an Slider.

Parameters
containerColor: Color = Color.Unspecified	The background color of this Slider when enabled
buttonIconColor: Color = Color.Unspecified	The color of the icon of buttons when enabled
selectedBarColor: Color = Color.Unspecified	The color of the progress bar when enabled
unselectedBarColor: Color = Color.Unspecified	The background color of the progress bar when enabled
selectedBarSeparatorColor: Color = Color.Unspecified	The color of separator between visible segments within the selected portion of the bar when enabled
unselectedBarSeparatorColor: Color = Color.Unspecified	The color of unselected separator between visible segments within the unselected portion of the bar when enabled
disabledContainerColor: Color = Color.Unspecified	The background color of this Slider when disabled
disabledButtonIconColor: Color = Color.Unspecified	The color of the icon of buttons when disabled
disabledSelectedBarColor: Color = Color.Unspecified	The color of the progress bar when disabled
disabledUnselectedBarColor: Color = Color.Unspecified	The background color of the progress bar when disabled
disabledSelectedBarSeparatorColor: Color = Color.Unspecified	The color of selected separator between visible segments when disabled
disabledUnselectedBarSeparatorColor: Color = Color.Unspecified	The color of unselected separator between visible segments when disabled

variantSliderColors

Added in 1.0.0-alpha26

@Composable
fun variantSliderColors(): SliderColors

Creates a SliderColors as an alternative to the default colors, providing a visual indication of value changes within a Slider.

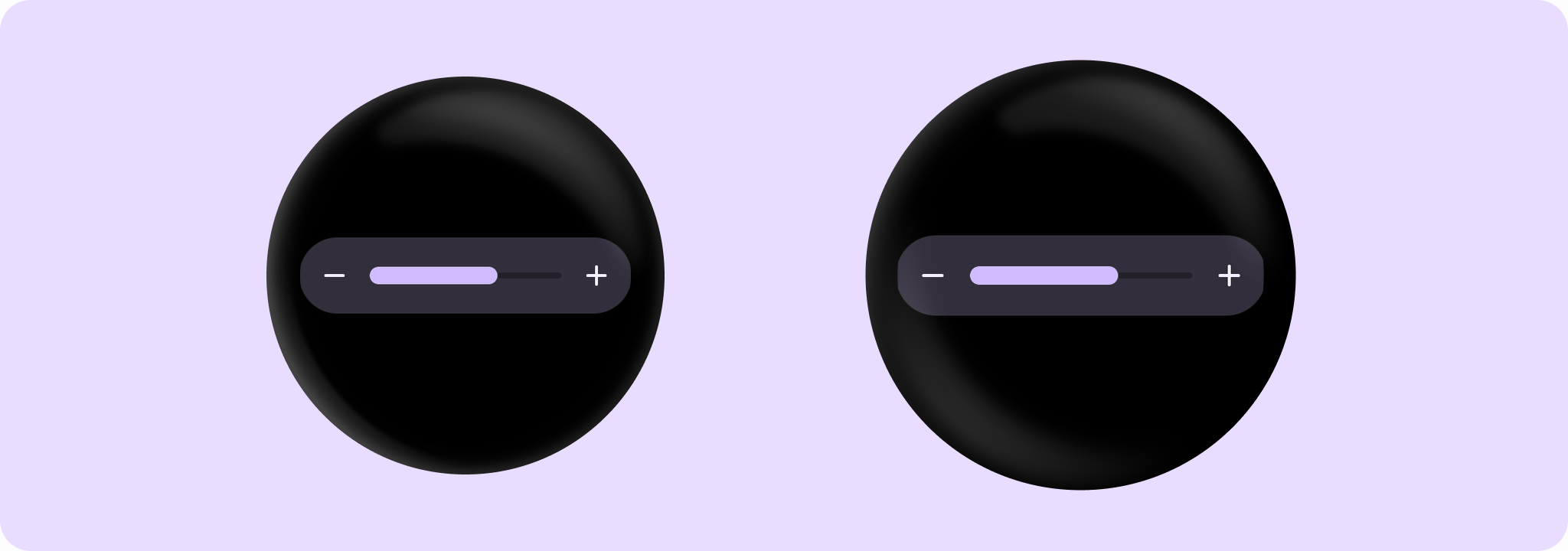

Example of a slider uses variantSliderColors when its value is different from the initial value:

import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.wear.compose.material3.Slider
import androidx.wear.compose.material3.SliderDefaults

val initialValue = 4.5f
var value by remember { mutableStateOf(initialValue) }
Slider(
    value = value,
    onValueChange = { value = it },
    valueRange = 3f..6f,
    steps = 5,
    segmented = false,
    colors =
        if (value == initialValue) {
            SliderDefaults.sliderColors()
        } else {
            SliderDefaults.variantSliderColors()
        }
)

variantSliderColors

@Composable
fun variantSliderColors(
    containerColor: Color = Color.Unspecified,
    buttonIconColor: Color = Color.Unspecified,
    selectedBarColor: Color = Color.Unspecified,
    unselectedBarColor: Color = Color.Unspecified,
    selectedBarSeparatorColor: Color = Color.Unspecified,
    unselectedBarSeparatorColor: Color = Color.Unspecified,
    disabledContainerColor: Color = Color.Unspecified,
    disabledButtonIconColor: Color = Color.Unspecified,
    disabledSelectedBarColor: Color = Color.Unspecified,
    disabledUnselectedBarColor: Color = Color.Unspecified,
    disabledSelectedBarSeparatorColor: Color = Color.Unspecified,
    disabledUnselectedBarSeparatorColor: Color = Color.Unspecified
): SliderColors

Creates a SliderColors as an alternative to the default colors, providing a visual indication of value changes within a Slider.

Example of a slider uses variantSliderColors when its value is different from the initial value:

import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.wear.compose.material3.Slider
import androidx.wear.compose.material3.SliderDefaults

val initialValue = 4.5f
var value by remember { mutableStateOf(initialValue) }
Slider(
    value = value,
    onValueChange = { value = it },
    valueRange = 3f..6f,
    steps = 5,
    segmented = false,
    colors =
        if (value == initialValue) {
            SliderDefaults.sliderColors()
        } else {
            SliderDefaults.variantSliderColors()
        }
)

Parameters
containerColor: Color = Color.Unspecified	The background color of this Slider when enabled
buttonIconColor: Color = Color.Unspecified	The color of the icon of buttons when enabled
selectedBarColor: Color = Color.Unspecified	The color of the progress bar when enabled
unselectedBarColor: Color = Color.Unspecified	The background color of the progress bar when enabled
selectedBarSeparatorColor: Color = Color.Unspecified	The color of separator between visible segments within the selected portion of the bar when enabled
unselectedBarSeparatorColor: Color = Color.Unspecified	The color of unselected separator between visible segments within the unselected portion of the bar when enabled
disabledContainerColor: Color = Color.Unspecified	The background color of this Slider when disabled
disabledButtonIconColor: Color = Color.Unspecified	The color of the icon of buttons when disabled
disabledSelectedBarColor: Color = Color.Unspecified	The color of the progress bar when disabled
disabledUnselectedBarColor: Color = Color.Unspecified	The background color of the progress bar when disabled
disabledSelectedBarSeparatorColor: Color = Color.Unspecified	The color of selected separator between visible segments when disabled
disabledUnselectedBarSeparatorColor: Color = Color.Unspecified	The color of unselected separator between visible segments when disabled

Public properties

IconSize

Added in 1.0.0-alpha26

val IconSize: Dp

The recommended size for Slider DecreaseIcon and IncreaseIcon button icons.

MaxSegmentSteps

Added in 1.0.0-alpha26

val MaxSegmentSteps: Int

The maximum recommended number of steps for a segmented Slider.

shape

Added in 1.0.0-alpha26

val shape: Shape

The recommended Shape for Slider.
